Rousselet Robatel has developed a unique line of horizontal peeler centrifuges which are specially tailored to R & D use for laboratory and pilot plant service.

Portable skid-mounted peeler centrifuge cGMP pilot scale horizontal peeler
Portable skid-mounted peeler centrifuge
500 mm (20″) diameter
Laboratory scale peeler centrifuge
250 mm (10″) diameter
cGMP pilot scale horizontal peeler
810 mm (32″) diameter

These horizontal peeler centrifuges have been furnished to pharmaceutical and fine chemical manufacturers worldwide, and include the following features:

  • Fully opening casing for easy inspection between batches
  • Compact, portable, and skid-mounted for multi-product use
  • Residual heel removal systems for complete product recovery
  • Validated CIP [Clean In Place] systems
  • Local control systems installed on the centrifuge skid
  • Pharmaceutical grade polishing or electropolishing
  • Bag-out containment system for solids sampling
  • Pharma documentation package [IQ / OQ, Factory Acceptance Test, …]
  • Clean room installation
  • Accurate scale-up to production equipment, requiring minimum quantities of material

In addition to the features mentioned above, our horizontal peelers offer these other benefits:

  • Explosion-proof electrical equipment
  • PLC Automated control system with up to 10 product recipe programming
  • Various cake detection devices
  • AC variable frequency drive for maximum processing flexibility
  • Pressurized pneumatic shaft seal
  • Feed pipe design that ensures optimum product distribution
  • Vaportightness to 40 mbar (16″) WC

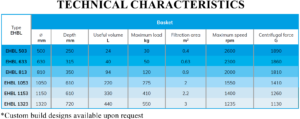

Click image for large view of tableTechnical Characteristics - Custom Built Designs Available Upon Request
